| AIT-1500（Standard） | AIT-1500（UL） | AIT-1500H（Heating） | AIT-1500H（UL +Heating） | AIT-1500S | AIT-1500SH（Heating） | |
 |  |  |  |  |  | |
| Electrical Parameter | ||||||
| Input Voltage | 300～1500V | 300～1500V | 300～1500V | 300～1500V | 300～1500V | 300～1500V |
| Output Voltage | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC |
| Rated Output Power | 150W | 150W | 150W | 150W | 350W | 350W |
| Rated Output Current | 6.25A | 6.25A | 6.25A | 6.25A | 14.6A | 14.6A |
| Battery Type | Lithium battery | Lithium battery | Lithium battery | Lithium battery | Lithium battery | Lithium battery |
| Battery Capacity | 99.9Wh | 99.9Wh | 99.9Wh | 99.9Wh | 99.9Wh | 99.9Wh |
| Daily Power Consumption | ＜0.05kWh/day | ＜0.05kWh/day | ＜0.05kWh/day | ＜0.05kWh/day | ＜0.05kWh/day | ＜0.05kWh/day |
| Stand Power | ＜0.7W | ＜0.7W | ＜0.7W | ＜0.7W | ＜0.7W | ＜0.7W |
| Tracking Algorithm and Operating Mode (Matching Communication Boxes and Sensors) | ||||||
| Tracking Algorithm | Active tracking closed loop control (astronomical algorithm + position feedback) | Active tracking closed loop control (astronomical algorithm + position feedback) | Active tracking closed loop control (astronomical algorithm + position feedback) | Active tracking closed loop control (astronomical algorithm + position feedback) | Active tracking closed loop control (astronomical algorithm + position feedback) | Active tracking closed loop control (astronomical algorithm + position feedback) |
| Back Tracking mode | Yes | Yes | Yes | Yes | Yes | Yes |
| Wind Protection Mode | Yes | Yes | Yes | Yes | Yes | Yes |
| Night Protection Mode | Yes | Yes | Yes | Yes | Yes | Yes |
| Rotation Angle Protection Mode | Yes | Yes | Yes | Yes | Yes | Yes |
| Over Current Protection Mode | Yes | Yes | Yes | Yes | Yes | Yes |
| Hail Protection Mode | Optional | Optional | Optional | Optional | Optional | Optional |
| Snow Protection Mode | Optional | Optional | Optional | Optional | Optional | Optional |
| Flood Protection Mode | Optional | Optional | Optional | Optional | Optional | Optional |
| Basic Parameter | ||||||
| Certification | CE | CE,UL | CE | CE | CE,UL,TUV | CE,UL,TUV |
| Operating Temperature | -10℃～60℃ | -10℃～60℃ | （-40℃～60℃ Optional ） | （-40℃～60℃ Optional ） | -10℃～60℃ | （-40℃～60℃ Optional ） |
| Ambient Adaptation Temperature | -40℃～85℃ | -40℃～85℃ | -40℃～85℃ | -40℃～85℃ | -40℃～85℃ | -40℃～85℃ |
| Communication Mode | Zigbee/RS485 | Zigbee/RS485 | Zigbee/RS485 | Zigbee/RS485 | Zigbee/RS485 | Zigbee/RS485 |
| Waterproof Grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Housing Material | Polymer material Makrolon*6487 | Polymer material Makrolon*6487 | Polymer material Makrolon*6487 | Polymer material Makrolon*6487 | Polymer material Makrolon*6487 | Polymer material Makrolon*6487 |
| Altitude | ＜4000m | ＜4000m | ＜4000m | ＜4000m | ＜4000m | ＜4000m |
| Weight | 2.8kg | 2.8kg | 2.8kg | 2.8kg | 2.8kg | 2.8kg |
| Dimension | 392*185*120mm（L*W*H） | 392*185*120mm（L*W*H） | 392*185*120mm（L*W*H） | 392*185*120mm（L*W*H） | 392*185*120mm（L*W*H） | 392*185*120mm（L*W*H） |
Key Features:
Professional Technical Support
User-friendly Interface
Advanced Algorithms for Optimal Power Generation
Reliable and Long-lasting Design
The AlT-1500 (Standard) adaptability makes it ideal for challenging environments, ensuring optimal performance and efficiency.

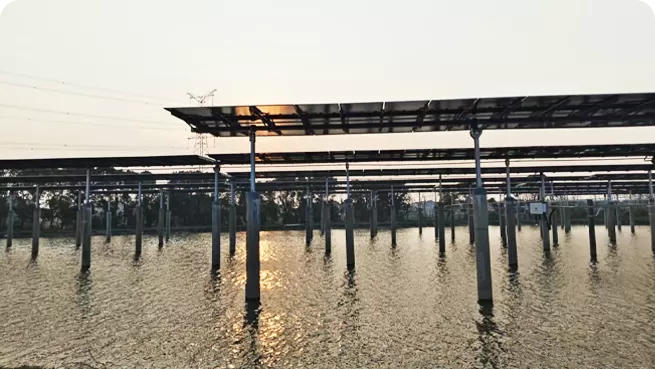

Seamless Integration: Combine solar energy with aquaculture to maximize land use and enhance economic returns.
Stability and Reliability: The AlT-1500 (Standard) ensures stable power generation, supporting both solar and fishery operations effectively.

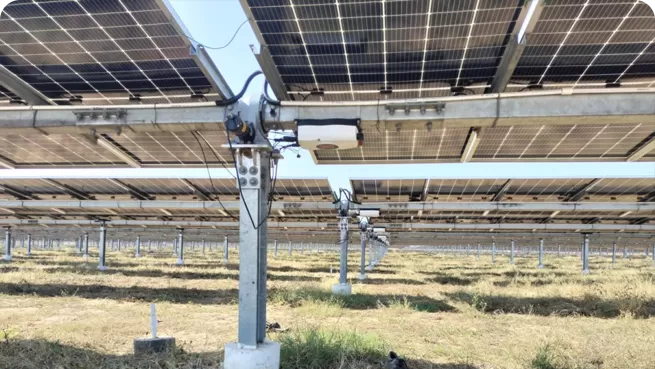

Consistent Power Delivery: Designed to provide reliable power for large-scale ground-mounted solar installations.
High Efficiency and Durability: The AlT-1500 (Standard) is engineered for high eficiency and long-term reliability, essential for utility-scale projects.

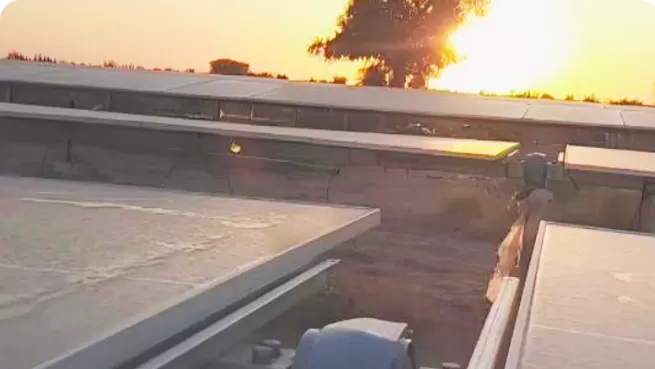

Durable Design: Withstands harsh desert conditions,including extreme temperatures and dust storms.
Continuous Operation: The AlT-1500 (Standard) ensures uninterrupted performance in demanding desert settings.
Flexible Mounting Options: Effectively harness solar energy on uneven terrain.
Optimal Positioning: The AlT-1500 (Standard) maximizes energy capture on slopes with its adaptable mounting solutions.
Eliminates Cable Laying
Simplifies installation processes, reducing construction complexity.
Facilitates Easy Electricity Access
Enhances flexibility in connecting to power systems.
Reduces Project Commissioning Time
Accelerates project deployment by minimizing setup stages.
Streamlines Commissioning Process
Simplifies operation, lowering technical requirements.
Requires Fewer Spare Parts, Simplifying Commissioning
Enhances system reliability by minimizing maintenance complexity.
Saves Time and Cable Laying Costs
Improves economic efficiency by lowering overall project expenses.
Removes the Need for Additional Small PV Panels
Reduces equipment requirements and simplifies system structure.
Overcomes 7-8 Year Lithium Battery Lifespan Limitations
Extends system lifespan and reduces replacement frequency.
Lowers Maintenance Costs
Improves return on investment by reducing long-term operating
Extends Life Expectancy
Enhances system stability and prolongs usage cycles.
