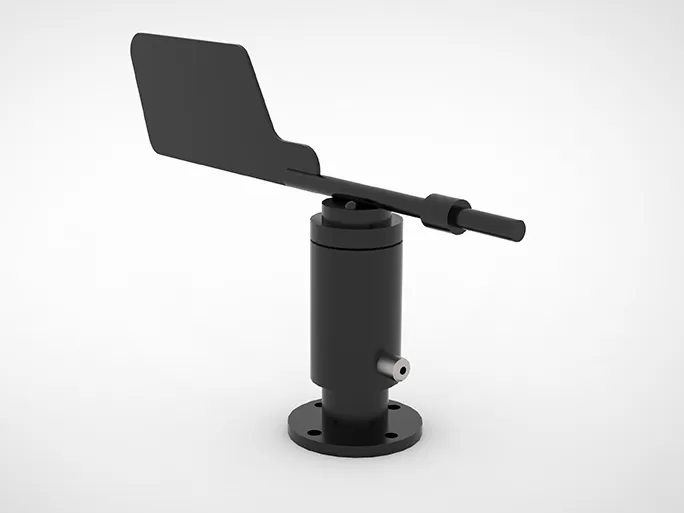

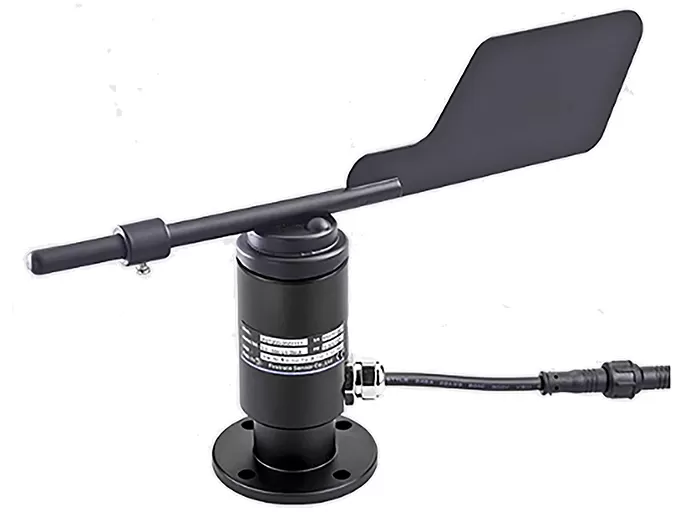

Wind Direction Sensor AIT-202 (Without Heating)

  • The FST200-200 series is a highly reliable, high-performance wind direction sensor. It can accurately and consistently collect environmental wind direction signals, making it suitable for applications such as high-altitude operations, engineering machinery, and port machinery.

  • The FST200-200 series wind direction sensor incorporates internal digital circuits with strong resistance to radio frequency interference, electromagnetic interference, and lightning surges. The circuit collects the directional signal from the wind vane and outputs an electrical signal that is linearly related to the environmental wind direction.

  • The main structural components of the FST200-200 series wind direction sensor are made from alloy materials with a surface treatment. The product has excellent waterproof and corrosion-resistant capabilities. All internal and rotating parts are designed with seals to effectively prevent the intrusion of water, salt spray, and sand.


AIT- FST202 Wind Direction Sensor


Standards Compliance

CE/EMC

Electrical Parameters

Operating Voltage

15-30VDC

Operating Current

100mA Max

Wiring Terminals

Aviation-Grade Waterproof Connector

Connector Plug

Four-Pin Connector

Mechanical Structure Parameters

Color

Anodized black finish

Housing Material

Aluminum Alloy/Polyester Coating

Wind Cup Material

Corrosion-resistant stainless steel housing

Weight

0.8kg

Operating Temperature

-20℃~+85℃

Operating Humidity

0%~95%(Non-condensing)

Vibration Tolerance

5-10Hz,d=3mm  10-500Hz,a=2g

Ingress Protection (IP) Rating

IP65

Salt Spray Resistance

ISO9227 720h

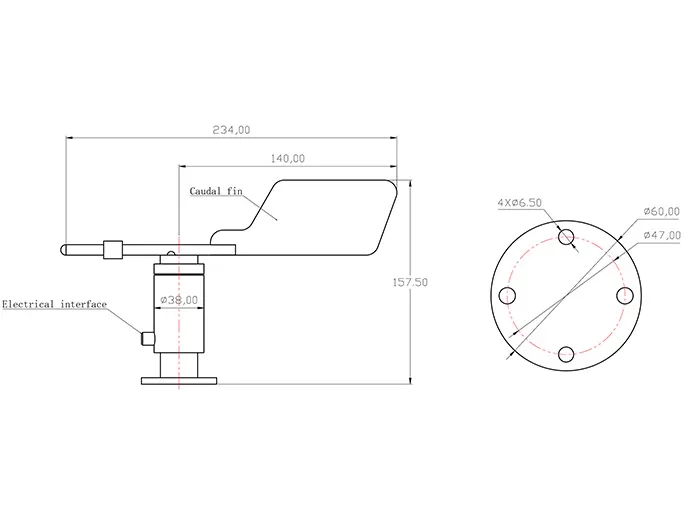

Mechanical Structure

Optical grating mechanical structure.

Meteorological Parameters

Starting Threshold

≥0.5m/s

Survival Wind Speed

>70m/s 30min

Electrosatic discharge (ESD) protection.

15KV

Accuracy

±3°

Measurement Range

0~360°

Output Signal

4~20mA,0~5VDC,0~10VDC,Pulse Input,RS485(Modbus)

Transmission Mode

MODBUS Protocol
