Non-contact magnetic sensing is used for the measurement principle, ensuring high accuracy and reliability of the collected data. The anemometer has a wide measurement range and a low start-up wind speed.
The unit is built with an all-metal housing and an anodized surface, providing excellent corrosion resistance and strong wind cup resilience. The wind cups, made of a magnesium-aluminum alloy, use a proven mechanical connection, making the sensor suitable for various harsh industrial environments.
Its compact design integrates both wind speed measurement and an automatic heating function, simplifying on-site installation and maintenance. The sensor also features a fault-tolerant design, preventing damage from incorrect wiring.
Additional features include multi-level lightning and surge protection and the ability to operate across a wide voltage range.

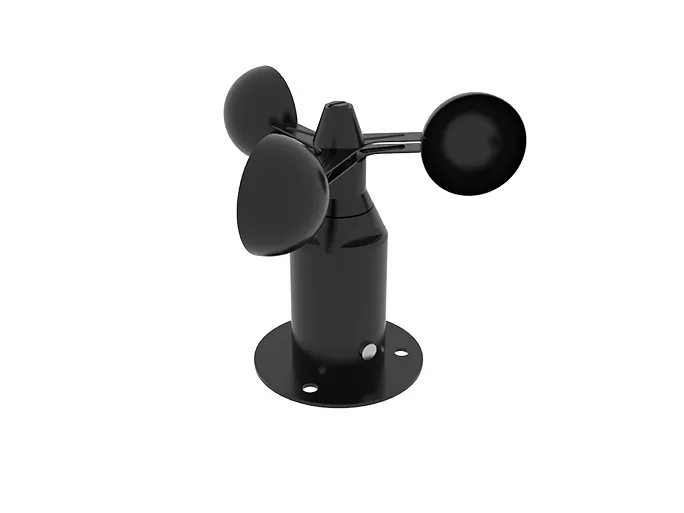

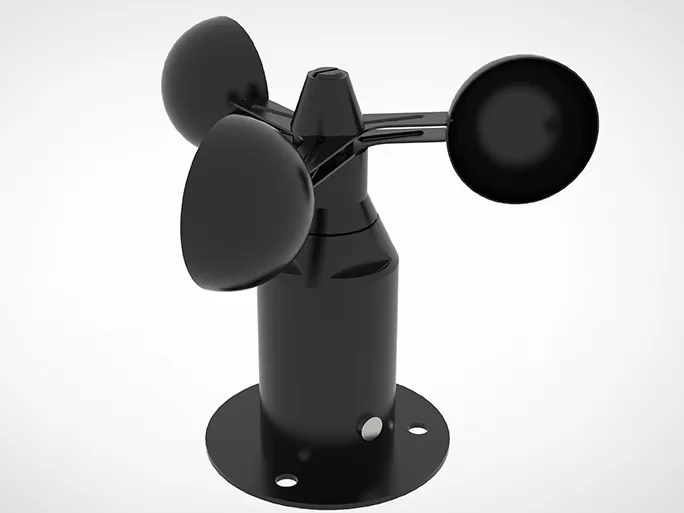

AIT- FA134 Wind Speed Sensor | |
 | |
Standards Compliance | CE/IEC 61326 |
Electrical Parameters | |
Operating Voltage | 12VDC～30VDC¹ |
Operating Current | 50mA Max² |
Heater Voltage | 18VDC~30VDC³ |
Heater Power | ≤50W |
Heater Principle | PTC Heating automatically |
EMC / ESD | IEC61000-4-2 Contact Discharge:±8kV Air Discharge:±15kV IEC61000-4-5 Line-to-Line:±2kV Line-to-Ground:±4kV |
Measurement Principle | Magnetic non-contact encoder scanning |
Connector | Aviation Connector |
Cable Configurations | 6-core shielded cable with an aviation connector |
Mechanical Specifications | |
Colour | Anodized Black |
Housing Material | 6061/Aluminum, Anodized |
Wind Cup Material | 5052/Aluminum, Anodized |
Bearing Material | Corrosion-resistant stainless steel 440C |
Net Weight | 0.6kg |
Operating Temperature | -40℃~+70℃ |
Operating Humidity | IEC60068-2-3 0~100% RH |
Vibration resistance | 5-10Hz,d=3mm 10-500Hz,a=2g |
Enclosure Protection Rating | IP65 |
Salt Spray Resistance | ISO9227 720h |
Meteorological Parameters | |
Starting Threshold | ≤0.5m/s Vu=20 C |
Survival Wind Speed | ＞70m/s |
Measurement Range | 0~50m/ |
Measurement Accuracy | ±0.5m/s(<5m/s);±3%FS(≥5m/s) |
Resolution | 0~30m/s /0~50 m/s |
