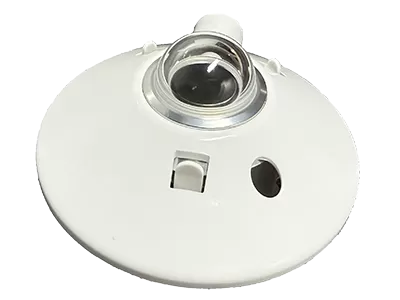

AIT- T20 Thermoelectric Solar Total Radiation Sensor | ||
 | ||
Power Supply Range | 9-30V DC (RS485，4-20mA，0-5V) 12-30V DC(0-10V) | |
Output Type | Digital Output | RS485 （Standard Modbus-RTU Protocol） |
Current Output | 4-20mA | |
Voltage Output | 0-5V , 0-10V | |
Operating Temperature | -40℃~60℃ | |
Sensitivity | ≥7μV / W·m² | |
Internal Resistance | <800Ω | |
Measuring Range | 0~2000W/m² | |
Accuracy | ≤±3%FS | |
Response Time | ≤45s | |
Resolution | 1W/m² | |
Non-linearity | ≤±3%FS | |
Annual Stability | ≤±3%FS | |
Spectroradiometric Range | 0.3-3μm | |
Spectroscopic Response Range | 300-3000nm | |
(IP) Rating | IP67 | |
Applicable Standards | Modbus-RTU Protocol | |
