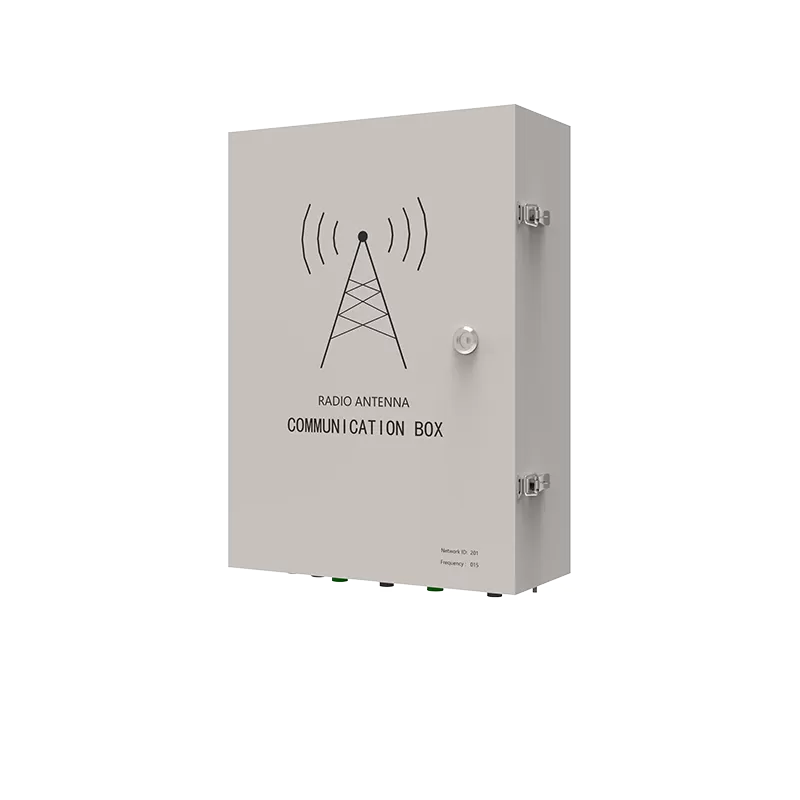

| NCU-240 Smart Network control Unit Datasheet | ||
| ||
| System parameter | ||
| Input Voltage | 85~264VAC | |
| Parameter Setting | PC/Bluetooth | |
| Time Zone | PC/Bluetooth | |
| Daily Power Consumption | 0.04 KWh/Day | |
| Dual GPS Calibration | Yes | |
| Latitude and Longitude Settings | Auto | |
| High Wind Speed Trigger Threshold | Auto | |
| Heavy Snow Trigger Threshold | Auto | |
| Emergency stop | Yes | |
| Meteorological Sensor Alarm | Yes | |
| Interrupt Alarm with TCU | Yes | |
| Wireless Communication | ZigBee/Bluetooth | |
| Wired Communication | RS485 | |
| Network Interface | Yes（LAN / RJ45） | |
| Mechanical Parameters | ||
| Mounting Method | Fixed by back-hanging | |
| Overall Dimensions | 240mm*230mm*125mm | |
| Enclosure Material | Powder-Coated Sheet Metal | |
| Water-proof Level | IP65 | |
| Operating Temperature | -10℃~60℃ (-40℃~60℃ Optional) | |
| Storage Temperature | -40℃~85℃ | |
| Broadcast Range (Radius) | ≤300m | |
| NCU-480 Smart Network control Unit Datasheet | |
| |
| System parameter | |
| Input Voltage | 85~264VAC |
| Output Voltage | 12VDC |
| Spare Lithium Battery | 4500mAh/99.9Wh |
| UPS Features | Yes |
| Surge Protection | Yes |
| Over Current Protection | 2A/500VAC |
| Anemometer High Power Heating | 100W/VDC |
| Parameter Setting | PC/Bluetooth |
| Time Zone | PC/Bluetooth |
| Daily Power Consumption | 0.04 KWh/Day |
| Dual GPS Calibration | Yes |
| Latitude and Longitude Settings | Auto |
| High Wind Speed Trigger Threshold | Auto |
| Heavy Snow Trigger Threshold | Auto |
| Meteorological Sensor Alarm | Yes |
| Interrupt Alarm with TCU | Yes |
| Wireless Communication | ZigBee/Bluetooth |
| Wired Communication | RS485 |
| Network Interface | Yes（LAN / RJ45） |
| Mechanical Parameters | |
| Mounting Method | Fixed by back-hanging |
| Overall Dimensions | 490mm*350mm* 155mm |
| Enclosure Material | Powder-Coated Sheet Metal |
| Water-proof Level | IP65 |
| Operating Temperature | -10℃~60℃ (-40℃~60℃ Optional) |
| Storage Temperature | -40℃~85℃ |
| Broadcast Range (Radius) | ≤500m |
Key Features:
Real-time Data
Remote Monitoring
Al Adaptability
Intelligent Control
Supports TCP, MQTT, RS485, ZigBee, and Bluetooth, ensuring consistent data exchange across diverse industrial environments.
Small footprint with high integration, ideal for limited space installations without compromising performance or functionality.
Enables continuous data transmission and instant feedback, supporting efficient decision-making and timely system adjustments.
IP65-rated enclosure with wide temperature tolerance ensures reliable operation in harsh weather and complex outdoor conditions.
Optimized for minimal daily power consumption while maintaining strong signal transmission and uninterrupted communication.
