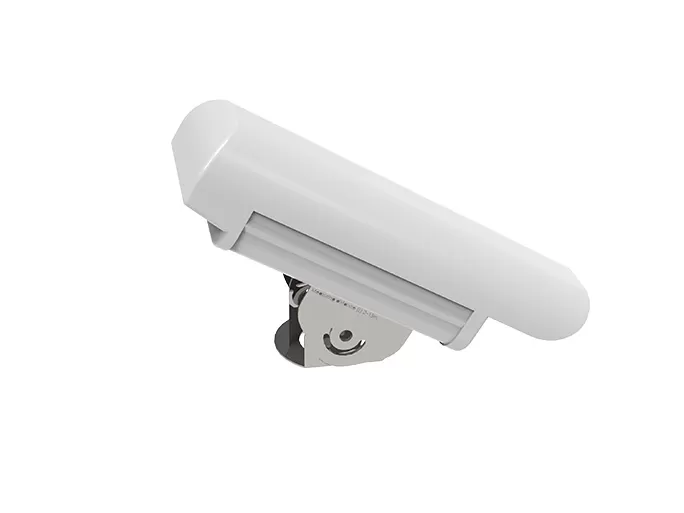

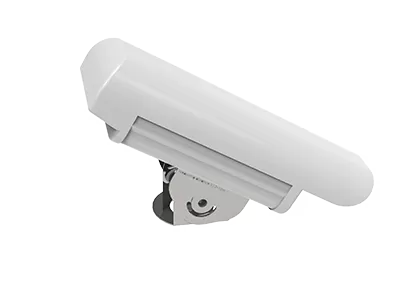

Snow Load Sensor AIT-JGXS-1

Snow Load Sensor AIT-JGXS-1
Product Model	Laser Snow Depth Sensor
Light Source	Laser
Laser Characteristics	Laser Diode
Wavelength	640mm
Light Spot Type	Spot Light Spot
Laser Grade	Class 2
Working Temperature	±40℃
Working Humidity	0~100%RH
Measurement Range	0.2~30m
Measurement Accuracy	≤±3mm
Sampling Frequency	≥10HZ
Display and Output Resolution	1mm
Measurement Angle	5°~ 60°
Power Consumption	10W
Protection Grade	IP65
Power Supply Voltage	12VDC

How does the snow sensor work?

A snow sensor works by detecting the presence of snow or ice on a surface and automatically triggering heating or control systems. Most snow sensor designs use either moisture-sensing probes, temperature sensors, or a combination of both. When the temperature drops near freezing and moisture is detected, the sensor identifies that snow or ice is forming. Once activated, the snow sensor sends a signal to turn on devices such as roof de-icing cables, ground heating mats, or outdoor safety systems.

By responding only when conditions meet specific thresholds, a snow sensor helps reduce energy consumption while keeping walkways, driveways, and roofs safe. Its automatic operation makes it ideal for smart building systems and winter maintenance applications.
